Tính năng : BT-SA-Ⅲ-OHS
◎ With a thread depth control mechanism (constant depth) , With an internal coolant supply through the side of the spindle
● Coolant pressure is up to 2MPa with TC-MO collets. TC-MO-MIST collets in mist specifications are also available.
● Model SA-Ⅲ for right-hand threading is standard. Model SA-Ⅲ for left-hand threading is also available.
| |
Matching Collets |
| ＳＡ3050-Ⅲ-OHS |
TC3050-MO |
| ＳＡ2035-Ⅲ-OHS |
TC2035-MO |
| ＳＡ1022-Ⅲ-OHS |
TC1022-MO |
| ＳＡ 412-Ⅲ-OHS |
TC 412-MO |

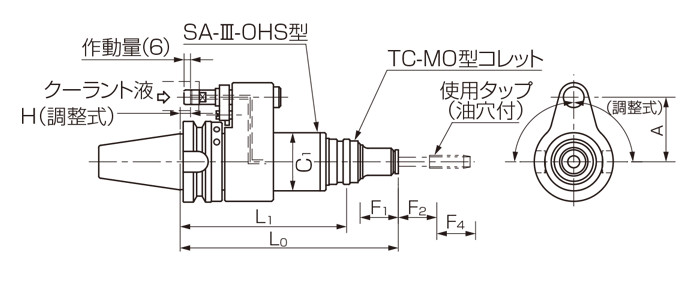

| Model |
L0
[mm] |
L1
[mm] |
C1
[mm] |
F1※
[mm] |
F2※
[mm] |
F4※
[mm] |
A
[mm] |
Adjustable Range
of H |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
| ★BT40-SA 412-Ⅲ-OHS |
233 |
189.5 |
48 |
3 |
( 5) |
( 8) |
65 |
- 6～36 |
M 3～M16 |
5.39 |
149,000 |
Download |
| ★BT40-SA1022-Ⅲ-OHS |
278 |
213.0 |
72 |
5 |
( 6) |
(10) |
M 8～M27 |
6.50 |
Download |
| ★BT50-SA 412-Ⅲ-OHS |
225 |
181.5 |
48 |
3 |
( 5) |
( 8) |
80 |
-14～28 |
M 3～M16 |
7.62 |
Download |
| BT50-SA1022-Ⅲ-OHS |
270 |
205.0 |
72 |
5 |
( 6) |
(10) |
M 8～M27 |
8.50 |
Download |
| BT50-SA2035-Ⅲ-OHS |
345 |
260.0 |
84 |
10 |
( 7) |
(11) |
-11～31 |
M18～M38 |
11.50 |
171,000 |
Download |
| ★BT50-SA3050-Ⅲ-OHS |
420 |
320.0 |
100 |
( 8) |
(14) |
M27～M56 |
18.20 |
198,000 |
Download |
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension, F4: Back Tension
※ F2 and F4 are only for reference.
